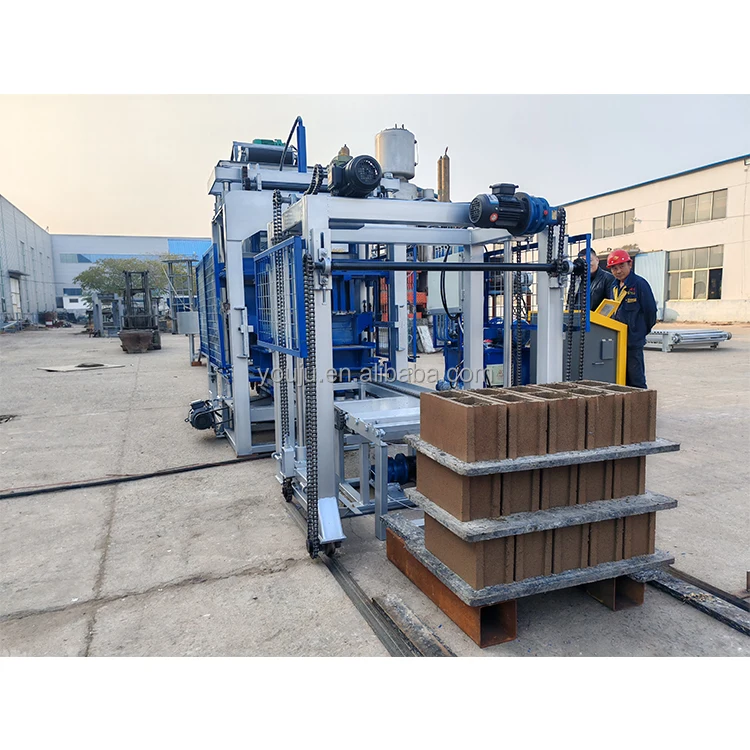

QT4-15 Hollow Block Making Machine Interlocking Brick Machine
This product is currently out of stock and unavailable. SKU: QT4-15 Hollow Block Making Machine Interlo-35644684 Category: Stationary block machine Description Additional information Description Product Description The QT4-15 Hydraulic Brick Making Machine Hollow Block Cement Making Machine is our newest design machine and controlled by the PLC. And this machine is considered to used with […]
Automation
Fully Automatic
Vibration
Air-bag System
Lead Time
15-25 Working Days
Warranty
12 Months
Product Details
Product Description
The QT4-15 Hydraulic Brick Making Machine Hollow Block Cement Making Machine is our newest design machine and controlled by the PLC. And this machine is considered to used with the middle and small factory.
model | QT4-15 Hydraulic Brick Making Machine Hollow Block Cement Making Machine |
Molding cycle | 15-30s |
pallets size | 900x500mm |
Vibration type | platform vibration |
Product height | 50-220mm |
overall power | 24.5kw |
Demolding method | hydraulic |
Vibration frequency | 50-70HZ |
features of QT4-15 automatic block machine
1.This machine can use flyash. slag. gangue and other kind industrial residue then with sand. water. crushed stone. cement all kind material to make all kind hollow block. paver brick. solid bricks just changing the moulds.
2.The whole process of this machine is controlled by PLC and powered by the hydraulic system. Monitoring with the approach switch. machinery. electric.hydraulic and vibrating system work together to make pallets feeding. material feeding. vibrating. demoulding process work automatically. And its characteristic is high efficient. easy-operated and easy-maintained.3.All the electrical and hydraulic parts are original imported or with China famous brand. So this machine is stable and with less faults.
4.Block molding mainly by hydraulic. machinery as sideline. vibrate and press to finish molding blocks. Our machine is assembled with our own patent vibrating system and with high power and frequency.5.The compressive strength of all blocks more than 15 MPa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation and dimensions are precise. the blocks are more consistency and low waster rate.
common blocks capacity and Block samples
blocks type | Size (mm) | Molding cycle | Qty/Mould (pcs) | Qty/hour (pcs) | Qty/8hr (pcs) |
hollow blocks | 400x200x200 | 15-20s | 4 | 900-1200 | 7200-9600 |
hollow blocks | 400x150x200 | 15-20s | 5 | 1080-1440 | 8640-11520 |
hollow blocks | 400x100x200 | 15-20s | 8 | 1440-1920 | 11520-15360 |
paver mould | 200×100*60 | 15-20s | 16 | 2880-3840 | 23040-30720 |
solid mould | 240x115x53 | 15-20s | 28 | 5930-6720 | 47400-53700 |
Related Products
Packing&Shipping
After Sales Service
customer working site
after the machine delivery. we will offer service in these ways:
1.we will offer the machine foundation drawing. the electric wiring diagram. and the block machine operation manuel instruction book.
2.if necessary. we will sent engineer fly to customer site for installation and train until the worker can operate and maintain the machine skilled.
3.online video instruction and offer spare parts free.
Company Introduction
Linyi Youju Machinery CO.. LTD is a professional manufacturer which is engaged in independently researching and developing. manufacturing and selling crushing equipment.block machine etc construction building machines. We have exported product to many countries. such as Mongolia. Russia. Philippines.India. Vietnam. Uzbekistan. Kyrgyzstan. Kazakhstan. Nigeria. South Africa.Oman .Botswana. America etc. What’s more.we receive good feedback about service and quality. We are not main for sales. but also for development of the market all over the world. Do our best to satisfy customers’ need and guarantee quality is our principal .With 27 years’ brick block machine manufacture & export experience.welcome all the customers to our company and build business relationship with us.
