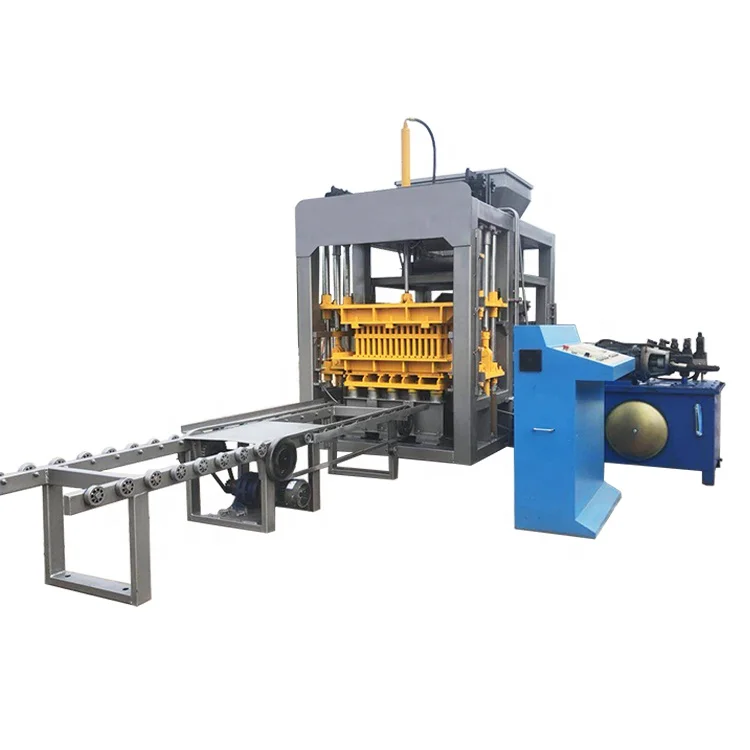

Industrial QT5-15 Automatic Brick Making Machine. Large Production Capacity for Paving Hollow Standard Blocks
This product is currently out of stock and unavailable. SKU: Industrial QT5-15 Automatic Brick Making M-35644867 Category: Stationary block machine Description Additional information Table of ContentsDescriptionAdditional informationRelated productsCheap Sale QTJ 4-40 Concrete Hollow Block Making Machine with Engine Hydraulic Pressure & Energy SavingManual Cement Hollow Concrete Block Making Machine with Diesel and Electric Motor High […]
Automation
Fully Automatic
Vibration
Air-bag System
Lead Time
15-25 Working Days
Warranty
12 Months
Product Details
Products Description
Main technical parameters
Overall Dimension | 7400×1950×2800mm |
Rated Pressure | 21MPa |
Main Vibration Form | Platform Vibration |
Vibration Frequency | 2800~4500 ( r/min) |
Pallet Size | 1100*550mm |
Molding cycle | 15-25 (s) |
Overall Power | 26.5KW |
Demolding method | Hydraulic |
Applied Products | Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone.colored pavers .etc. |
Raw Material | Crushed stone. sand . cement. dust. and fly ash. gravel. slag. and other raw material . etc. |
Common blocks theoretical Capacity and common blocks samples
Item | Specification Size(L*W*H) | Qty/mold (pcs) | Cycle Molding | Per hour (Pcs) |
Hollow brick | 400*200*200mm | 5 | 16-20s | 1800pcs |
Hollow block | 400*150*200mm | 6 | 15-20s | 1300pcs |
S paver | 225*112.5*60mm | 16 | 15-17s | 3700pcs |
Customer Visiting and customer working site
Packaging And Shipping
Company Profile
Shiyue Machinery is a professional manufacturer which is engaged in independently researching and developing. manufacturing and selling crushing equipment.block machine etc construction building machines. We have exported product to many countries. such as Mongolia. Russia. Philippines.India. Vietnam. Uzbekistan. Kyrgyzstan. Kazakhstan. Nigeria. South Africa.Oman .Botswana. America etc. What’s more.we receive good feedback about service and quality. We are not main for sales. but also for development of the market all over the world. Do our best to satisfy customers’ need and gurantee quality is our principal .With 27 years’ brick block machine manufacture & export experience.welcome all the customers to our company and build business relationship with us!
Our Service
1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation.2) Train the users to command the equipment and guide them for safe production.3) Explain the routine maintenance of equipment carefully and remove common faults.4) We are responsible for all the repairs that caused by our quality problems within one year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)5) For some countries whose visas are difficult obtained. customers can also send their technicians to our company to receive free guidance and training.6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market. provide the products and services to meet the user’s needs and create value for them.7) We will make every effort to solve your problems. and your success will add new glory to us.
