Compressed Earth Block Machine Assembly Guide for Small Construction Business Owners

Tighter bolts do not mean a stronger machine; they often mean a distorted mold.

Proper assembly of a compressed earth block machine is the single most critical factor in determining its operational lifespan and return on investment. Skipping precise foundation leveling, ignoring hydraulic flow direction, or neglecting electrical phase sequence verification leads to immediate mechanical failure, often within the first few hours of operation. This guide provides a step-by-step technical walkthrough for site preparation, hydraulic piping, and commissioning, ensuring your equipment runs reliably from day one.

I still remember the smell of burnt hydraulic oil in Apapa Port, Lagos. A client had just unpacked a new unit, eager to start production for a housing contract. The manual provided by the factory was generic, with diagrams that lacked specific orientation markers. The local technicians, working under pressure, connected the inlet and outlet hoses based on intuition rather than specification. When they powered up the system, the pump screamed and failed in less than ten minutes. That incident was not due to poor manufacturing quality, but a fundamental error in assembly protocol. Since then, I have supervised installations across Ethiopia and Nigeria, watching teams navigate the complexities of setting up a brick plant. The difference between a profitable venture and a costly downtime event often lies in these initial setup details. [NEED_CITE: common causes of hydraulic pump failure in construction machinery]

Understanding the correct procedure prevents these avoidable losses. Let us break down the assembly process into manageable, technically sound steps.

Why Proper Assembly Determines Your Machine’s Lifespan?

Incorrect installation is responsible for the majority of early-stage failures in heavy construction equipment. Many small business owners assume that because the machine arrives in parts, the assembly is merely a mechanical puzzle. In reality, it is a precision engineering task. The structural integrity of the frame, the cleanliness of the hydraulic system, and the alignment of the mold cavity are interdependent. If one element is compromised, the entire system suffers.

For instance, a slight misalignment in the main frame can cause uneven wear on the guide rails. Over time, this leads to increased vibration, which loosens bolted connections and accelerates fatigue in the steel structure. Similarly, contaminants left in hydraulic lines during assembly can score pump internals, leading to pressure drops and inconsistent block density. [NEED_CITE: impact of contamination on hydraulic system longevity]

The goal of this Compressed Earth Block Machine Assembly Guide is to establish a baseline of precision that protects your investment. By adhering to strict assembly standards, you ensure that the machine operates within its designed tolerances, maximizing uptime and minimizing maintenance costs.

How to Prepare the Site and Foundation?

Levelness is not a suggestion; it is a prerequisite for precision molding.

Before uncrating any components, the foundation must be prepared. A compressed earth block machine generates significant dynamic loads during the compression cycle. If the base is uneven, the frame will twist under load, causing the mold to bind or the ejection mechanism to jam.

1. Site Selection: Choose a flat, stable area with adequate drainage. Avoid locations prone to waterlogging, as moisture can undermine the foundation stability.
2. Concrete Foundation: Pour a reinforced concrete slab with sufficient thickness to handle the machine’s weight and operational vibrations. The surface must be smooth and level.
3. Leveling Verification: Use a precision spirit level or laser level to check the foundation. The tolerance for deviation should be minimal, typically less than two millimeters across the entire mounting surface. [NEED_CITE: standard tolerance levels for industrial machinery foundation]
4. Anchor Bolt Placement: Mark the positions for anchor bolts according to the manufacturer’s layout diagram. Ensure the holes are drilled perpendicular to the surface to prevent stress concentrations on the bolts.

In an Ethiopian housing project I visited, the team skipped the precise leveling step, assuming the rough concrete floor was "close enough." Within weeks, the mold alignment drifted, resulting in blocks with uneven density and poor dimensional accuracy. The cost of re-leveling the foundation and realigning the machine far exceeded the initial effort required to get it right. Do not make this mistake. Take the time to verify the foundation before placing the first component.

What Are the Critical Steps for Hydraulic and Electrical Setup?

Hydraulic direction and electrical phase sequence are non-negotiable checks.

The hydraulic system is the heart of the machine, and the electrical system is its nervous system. Errors here are catastrophic and often immediate.

Hydraulic System Setup

1. Cleanliness: Before connecting any hoses, ensure that all ports and pipes are free from debris. Use lint-free cloths and approved cleaning agents. Contaminants are the primary enemy of hydraulic components.
2. Hose Connection: Refer to the schematic carefully. Identify the inlet and outlet ports on the pump and valve block. Many modern machines use color-coded labels or distinct fitting sizes to prevent reversal. If labels are unclear, trace the lines logically from the reservoir to the pump inlet.
3. Fluid Selection: Use only the hydraulic oil specified by the manufacturer. Using oil with incorrect viscosity can cause seal swelling, leaks, or inadequate lubrication. [NEED_CITE: importance of correct hydraulic fluid viscosity for seal integrity]
4. Flushing: After assembly, flush the hydraulic system to remove any residual particles from the piping. This step is crucial for new installations where pipe cutting and threading may have introduced metal shavings.

Electrical Setup

1. Power Supply Verification: Confirm that the voltage and frequency of the site power match the machine’s requirements.
2. Phase Sequence: For three-phase motors, the phase sequence determines the direction of rotation. Incorrect sequencing can cause the motor to run in reverse, potentially damaging the mixer or pump. Use a phase sequence tester to verify the correct order before connecting the motor.
3. Grounding: Ensure proper grounding of the electrical cabinet and motor frame to prevent electric shock and protect sensitive electronic components from surges.

A roadside producer in Nigeria once ignored the phase sequence check. The motor rotated in reverse, causing the mixer blades to strike the tank wall, resulting in significant damage. A simple five-minute test with a phase sequence tester would have prevented this costly error. Always involve a qualified electrician for these steps.

How to Conduct the First Test Run Safely?

A dry run is not optional; it is your final safety net.

Before introducing soil or cement, perform a comprehensive dry run to verify all systems.

1. Pre-Commissioning Checklist:
   • Check all fluid levels (hydraulic oil, gear oil).
   • Verify electrical grounding resistance.
   • Inspect mechanical clearances between moving parts.
   • Ensure all safety guards are in place.
2. Jogging the Motor: Briefly energize the motor to confirm correct rotation direction. Listen for unusual noises.

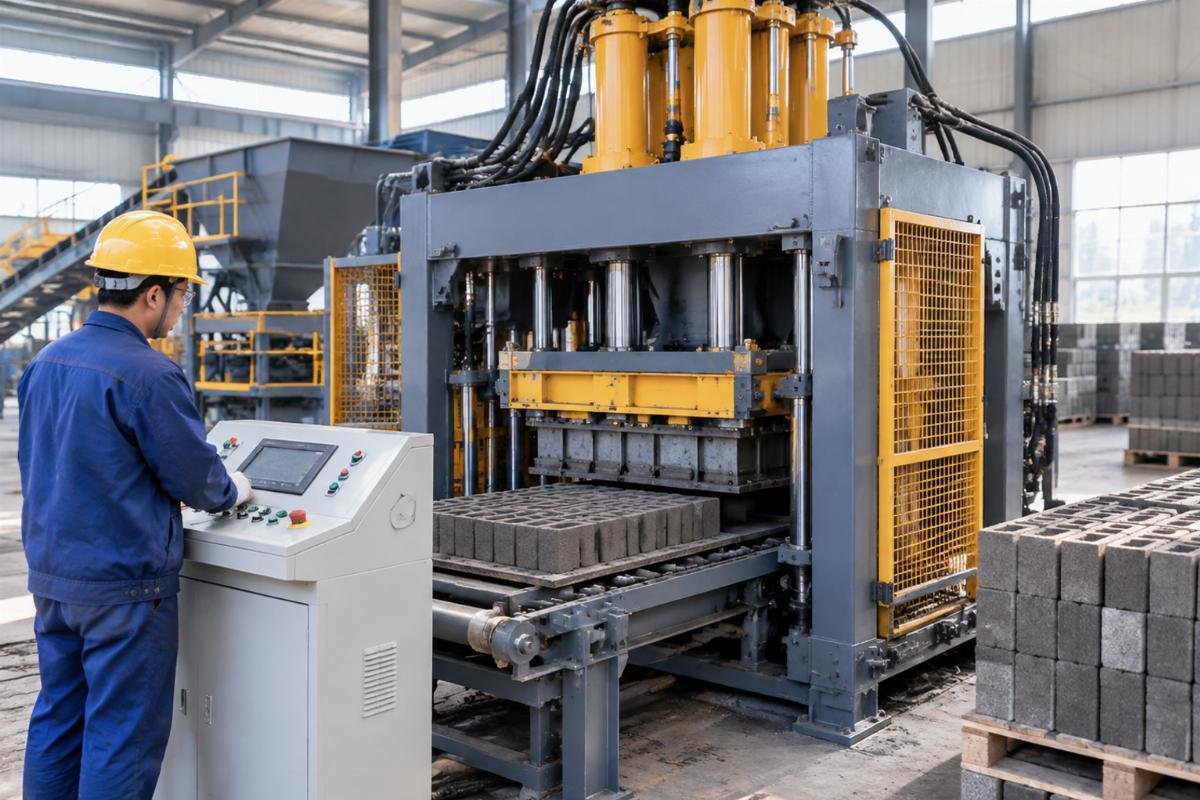

3. Hydraulic Pressure Test: Operate the hydraulic cylinders without load. Check for leaks at connections and observe the smoothness of cylinder movement. Adjust pressure relief valves to the recommended settings. [NEED_CITE: standard procedure for hydraulic pressure testing]
4. Mold Alignment Verification: Use dial indicators or feeler gauges to check the alignment of the mold halves. Ensure they close evenly and seal properly.
5. Load Test: Introduce a small amount of dry material to test the mixing and feeding mechanisms. Then, proceed with a full production cycle using the intended soil-cement mix. Monitor the machine for vibration, noise, and temperature rise.

During this phase, attention to detail is paramount. If you notice any irregularities, stop immediately and investigate. Do not force the machine to operate through problems. At Shiyue, we provide remote diagnostic assistance and operator training to help new investors navigate this critical phase. This support ensures that the assembly steps are followed correctly, reducing the risk of early failure and helping you achieve a faster return on investment.

Following this Compressed Earth Block Machine Assembly Guide will help you avoid the common pitfalls that plague many new installations. By focusing on foundation precision, hydraulic integrity, and electrical safety, you set the stage for a reliable and productive operation.

Conclusion

Precision in assembly translates directly to profitability in production.

Investing time in proper site preparation, careful hydraulic and electrical setup, and thorough commissioning prevents the majority of early-stage equipment failures. By adhering to these technical standards, small construction businesses can ensure their compressed earth block machines deliver consistent performance and long-term value.
