High-pressure water does not clean concrete mixers; it often drives abrasive slurry deeper into seal assemblies.
Effective concrete mixer cleaning and sanitizing requires a disciplined sequence of dry mechanical removal followed by pH-balanced chemical neutralization, rather than relying solely on forceful rinsing. This approach prevents the rapid hardening of residual cement paste on mixing blades and liners, which is the primary cause of uneven torque loads and premature mechanical failure in high-volume block production. By integrating mid-cycle rinsing protocols and specific dry-air blowout techniques for recycled aggregate operations, plant managers can significantly reduce unplanned downtime and extend the service life of critical wear components.
Having assembled mixing units in Linyi and later troubleshooting field installations across West Africa, I observed that operational habits often contradict manufacturer guidelines. In Lagos, a facility operating in high humidity faced rapid setting issues on mixer shafts. The local team initially increased water pressure to combat buildup, but this only accelerated corrosion of the liner plates. Switching to a protocol that prioritized immediate dry scraping after each batch, followed by a controlled chemical soak, stabilized the mixing efficiency. This shift was not about working harder, but about understanding how cement chemistry interacts with steel surfaces under tropical conditions. [NEED_CITE: impact of humidity on concrete setting time in industrial mixers]
Why Is Regular Mixer Sanitization Critical for Block Line Efficiency?
Accumulated concrete residue alters the effective volume of the mixing chamber, leading to inconsistent mix ratios and increased strain on the drive system.
When hardened concrete builds up on the interior walls and blades of a mixer, it reduces the available space for new batches. This forces the motor and gearbox to work against higher resistance, often resulting in overheating or unexpected trips during peak production hours. More critically, uneven buildup creates imbalances in the rotating assembly, causing vibration that accelerates wear on bearings and seals. For precast concrete plant maintenance, ignoring these early signs of imbalance can lead to catastrophic shaft failures that halt the entire block line for weeks while waiting for replacement parts.
In one case involving a startup using recycled aggregate, the abrasive dust from the crushed material accumulated in the seal areas. The maintenance team initially ignored this fine powder, assuming it would wash away during the end-of-shift cleanup. However, the mixture of dust and moisture created a grinding paste that destroyed the lip seals within months. Implementing a dry-air blowout step before any wet washing removed this abrasive layer, extending the seal replacement cycle substantially. This highlights that concrete mixer cleaning and sanitizing is not just about hygiene; it is a fundamental mechanical preservation task. [NEED_CITE: abrasion mechanisms in recycled aggregate processing]
The relationship between cleanliness and efficiency is direct. A clean mixer ensures that the designed blade angles interact with the aggregate and cement as intended, providing homogeneous mixing without dead zones. When residue blocks these zones, the resulting block quality suffers from weak spots or color variations, leading to higher rejection rates. Therefore, regular sanitization is an investment in product consistency and equipment longevity, not merely a housekeeping chore.
What Are the Step-by-Step Procedures for Safe and Effective Cleaning?

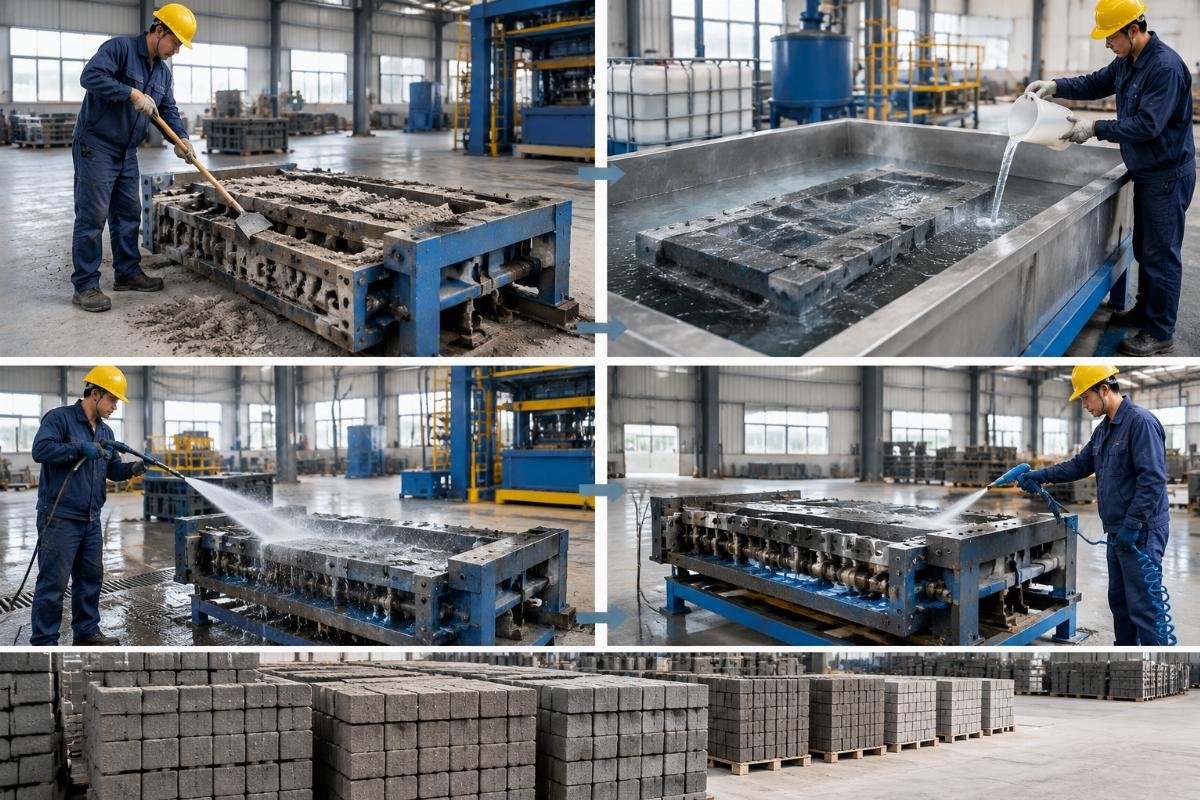

A structured workflow combining dry removal, chemical neutralization, and low-pressure rinsing yields better results than high-pressure scouring alone.
The most common mistake in mixer maintenance is attempting to remove hardened concrete with high-pressure water jets immediately after production stops. This method often fails because the water cannot penetrate the dense, set layer of cement paste, and the force can damage sensitive electrical components or push debris into bearing housings. A more effective approach involves a multi-stage process that respects the material properties of both the concrete and the mixer components.
- Immediate Dry Scraping: As soon as the last batch is discharged, use wooden or plastic scrapers to remove loose and semi-hardened concrete from the blades and liners. Metal tools should be avoided to prevent scratching the protective surface of the liners. This step removes the bulk of the material before it fully cures.
- Chemical Soak: Apply a pH-balanced cleaning agent designed to break down cement bonds. Allow the solution to sit for a specified duration, typically ranging from fifteen to thirty minutes, depending on the ambient temperature and the hardness of the residue. This chemical action softens the remaining film, making it easier to remove without mechanical force. [NEED_CITE: recommended pH levels for concrete dissolving agents]
- Low-Pressure Rinse: Use water at moderate pressure to wash away the softened residue. High pressure is unnecessary at this stage and poses a risk to seals and electrical connections. Ensure that all chemical residues are thoroughly flushed to prevent long-term corrosion.
- Dry-Air Blowout: For mixers processing recycled or dusty aggregates, use compressed air to blow out any remaining moisture and fine particles from seal areas and inspection ports. This step is crucial for preventing the formation of abrasive pastes in hidden cavities.
- Visual Inspection: Before closing the mixer, inspect the blades and liners for signs of excessive wear or damage. Look for cracks, deep gouges, or loose bolts that may have been obscured by concrete buildup.
This procedure minimizes the physical stress on the mixer components while ensuring a thorough clean. It also reduces the amount of wastewater generated, which is an important consideration for environmental compliance in many regions. By adopting this method, facilities can achieve consistent results in concrete mixer cleaning and sanitizing without compromising the integrity of their equipment.
How Do You Prevent Cross-Contamination in Multi-Color Production?
Standardized flush batches and validated cleaning protocols are essential to maintain color purity in decorative paver manufacturing.
Producing multi-color blocks or pavers requires strict control over cross-contamination. Even small amounts of residual pigment from a previous batch can ruin the aesthetic quality of the next run, leading to significant material waste and customer complaints. The key to preventing this issue lies in a disciplined flushing protocol that goes beyond standard cleaning routines.
When switching colors, especially from dark to light shades, a dedicated "flush batch" of neutral-colored concrete should be mixed and discharged. This batch acts as a scavenger, picking up residual pigment from the blades, liners, and discharge gate. After the flush batch is removed, a thorough wet wash with a mild detergent is necessary to remove any remaining tinted slurry. It is important to verify the cleanliness of the mixer by inspecting the interior surfaces under bright light before introducing the new colored mix.
In a facility producing interlocking pavers, the implementation of a standardized flush protocol reduced material waste during changeovers noticeably. The team previously relied on visual checks alone, which often missed faint discoloration in hard-to-reach areas. By adding a mandatory flush batch and a post-wash inspection checklist, they ensured consistent color quality across batches. This approach demonstrates that concrete mixer cleaning and sanitizing must be adapted to the specific production requirements, such as color sensitivity, to be truly effective. [NEED_CITE: best practices for color changeover in concrete production]
Additionally, using separate storage containers for different pigments and cleaning tools for each color can further reduce the risk of accidental contamination. These simple organizational measures, combined with rigorous cleaning procedures, help maintain the high standards required for decorative concrete products.
What Maintenance Checks Should Follow Each Cleaning Cycle?
Post-cleaning inspections provide the earliest opportunity to detect wear and prevent costly mechanical failures.
Cleaning a mixer offers a unique window into its internal condition. With the concrete removed, technicians can clearly see the state of the blades, liners, and seals. Ignoring this opportunity means missing early warning signs of wear that could lead to unexpected breakdowns. A systematic inspection checklist should be part of every cleaning routine to ensure that minor issues are addressed before they escalate.
Key areas to inspect include:
- Blade Wear: Check for thinning or chipping of the mixing blades. Excessive wear reduces mixing efficiency and can cause imbalance. Replace blades when they reach the manufacturer’s specified minimum thickness.
- Liner Integrity: Look for cracks, holes, or loose bolts in the liner plates. Damaged liners allow concrete to accumulate behind them, leading to further damage and potential structural failure.
- Seal Condition: Inspect shaft seals for leaks or signs of abrasion. Wet or gritty seals indicate that the blowout step may need improvement or that the seals are nearing the end of their service life.
- Bolt Tightness: Verify that all bolts securing the blades and liners are tight. Vibration during mixing can loosen these fasteners over time, posing a safety hazard and risking component loss.
Some modern mixers, such as those in the QT series, feature accessible inspection ports and wear-resistant liners designed to simplify these checks. These design elements allow technicians to perform thorough inspections without extensive disassembly, reducing labor time and encouraging more frequent monitoring. By making inspection easier, manufacturers support better maintenance practices, which in turn extends the overall lifespan of the equipment. [NEED_CITE: design features facilitating maintenance in industrial mixers]
Regularly documenting these inspections helps track wear patterns and plan for proactive replacements. This data-driven approach to maintenance ensures that the mixer remains in optimal condition, supporting consistent production quality and minimizing unplanned downtime.
Conclusion
Consistent and methodical cleaning preserves both the mechanical integrity of the mixer and the quality of the final block product.
Effective concrete mixer cleaning and sanitizing is not a optional task but a core component of efficient precast plant operation. By moving beyond simple high-pressure washing to adopt a structured protocol of dry removal, chemical treatment, and targeted inspection, facilities can prevent the common pitfalls of buildup and corrosion. This discipline protects the investment in machinery and ensures that every batch meets the required standards for strength and appearance.
