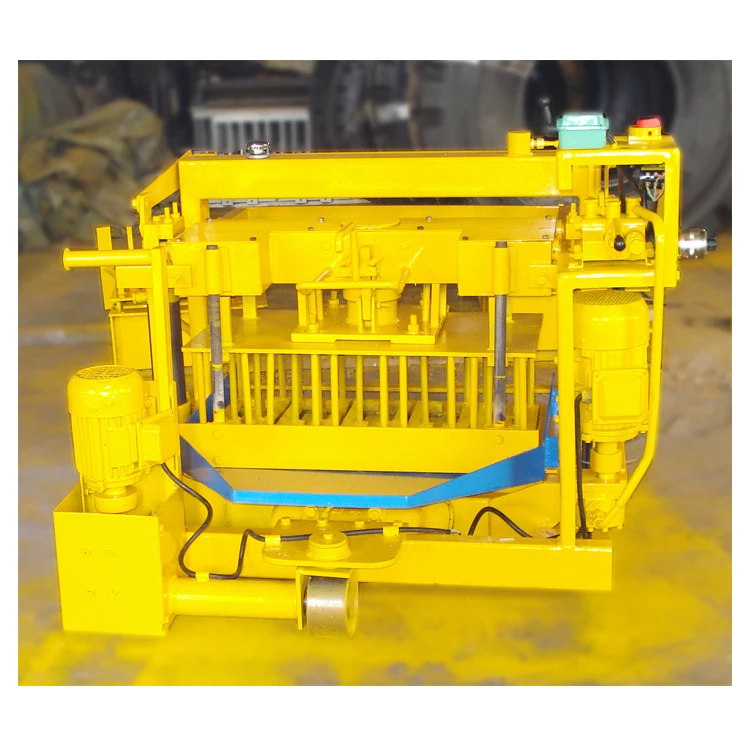

QMY4-30 Mobile Cement Block Making Machine | Specifications52

Description

Matched System Delivery — machine, mould, and hydraulic parameters configured together so the QMY4-30 mobile block machine produces consistent density on your actual aggregate, not a catalogue default.

Technical Specifications

Application Suitability

What "15–25 Seconds per Cycle" Actually Depends On

The molding cycle only holds when vibration force, hydraulic pressure, and your local aggregate are matched — otherwise cycle time stretches and block strength drops.

Many buyers receive a mobile block making machine specifications sheet stating a cycle range without naming which block format or mix design produced that number. On-site in West Africa, I have watched contractors arrive with a machine rated at a fast cycle, only to discover their local river sand carried high clay content that absorbed vibration energy differently. The result was blocks cracking at the edges and cycle times nearly doubling. The QMY4-30 delivers 6–8 MPa hydraulic pressure combined with 28.6 kN vibration force, but those figures only translate into real output when the raw material is tested first [NEED_CITE: aggregate gradation standards for concrete block production]. Sending a sample of your sand or crushed stone before finalizing configuration lets the vibration frequency and pressure be set to your actual material rather than a generic baseline.

Molding Area and Format Reality

The 400 × 800 mm molding area defines how many blocks the QMY4-30 can press in a single cycle. For standard 400 × 200 × 200 mm hollow blocks, that area accommodates a limited cavity count, which directly governs daily throughput when multiplied by the confirmed cycle time per format. Buyers comparing mobile block making machine specifications often overlook that molding area, not motor power, sets the ceiling on pieces per cycle. Mould drawings should be reviewed against the block dimensions your local market actually purchases before the order is placed.

Pallet-Free Operation and Curing Layout

The QMY4-30 lays blocks directly on a prepared ground surface, eliminating the need for pallets, pallet return conveyors, and pallet storage racks. This simplifies the production footprint but shifts the planning burden to ground preparation and curing zone layout. A flat, compacted concrete floor is necessary so that freshly demoulded blocks do not settle unevenly during the initial cure. Contractors running multiple job sites benefit from this arrangement because the machine moves without a pallet inventory following it [NEED_CITE: ground curing practices for mobile block production in tropical climates].

Hydraulic Pressure and Vibration Force Explained

Block density in mobile cement block machines is the product of two forces working together: hydraulic pressure pushes the mould head down while vibration settles the aggregate into a tight matrix. The QMY4-30 applies 6–8 MPa through its hydraulic demolding system while the moulding table vibrates at 4500 r/min, generating 28.6 kN of compaction force. If vibration is too low for a coarse gravel mix, voids remain inside the block and compressive strength falls short of building code requirements. If pressure is excessive for a fine sand mix, the block cracks during demolding. Matching both parameters to your specific aggregate gradation and cement ratio is what produces consistent strength across batches. Water consumption sits around 4 tonnes per day, which must be factored into site planning where water supply is limited.

The Cost of Skipping Mix-Design Verification

When a machine is configured against catalogue defaults rather than the buyer’s actual raw material, the problems appear weeks after commissioning. Blocks may pass visual inspection but fail compressive strength tests because the vibration energy was never calibrated for the local sand’s moisture retention characteristics. Mould wear accelerates when aggregate is harder than anticipated, and replacement moulds ordered from the original supplier take weeks to arrive. These are not manufacturing defects — they are specification mismatches that could have been caught with a simple material sample [NEED_CITE: compressive strength testing methods for concrete masonry units].

Why Source the QMY4-30 Through This Channel

Block machinery is the sole product focus here, so the QMY4-30 is specified as a matched system — machine, mixer, and mould together — rather than assembled from unrelated suppliers. Mould design is matched to the formats your market sells, with custom drawings available when standard options do not cover your requirements. The automation level starts at automatic operation and can be adjusted, so first-time buyers do not over-invest in features they cannot yet maintain. Capacity calculations are stated per block format, not as a single headline number, giving you a realistic basis for project scheduling. Installation support includes on-site commissioning and operator training so the crew understands mould change procedure and daily maintenance intervals from the first production run.

Documentation & Verification

• Machine specification sheet listing confirmed cycle time per block format
• Mould drawing and format list matched to your 400 × 800 mm molding area
• Hydraulic and electrical schematic with voltage and frequency confirmed for your site
• Factory test record using your submitted raw material sample before dispatch
• Operation and maintenance manual with mould change instructions

Installation, Commissioning & Support

• Ground leveling within the 500 m² factory area to support pallet-free block laying
• Electrical supply matching 5.95 kW total load with dedicated circuit breaker
• JQ350 mixer positioned to feed the QMY4-30 within the 1300 × 1500 × 1000 mm host footprint
• On-site commissioning with vibration frequency and hydraulic pressure calibrated to your aggregate
• Operator training covering hydraulic demolding sequence and daily vibration table inspection
• Wear parts list and mould replacement schedule provided at handover

Before You Request a Quote

To configure the QMY4-30 accurately, share the block formats your market demands along with target daily output for each format. A sample of your local sand or crushed stone allows the vibration and pressure settings to be verified before production. Confirm your site voltage, frequency, and preferred control display language so commissioning is not delayed on arrival.

Frequently Asked Questions

Q: What block formats fit the 400 × 800 mm molding area and what is the cycle time for each?
A: The molding area accommodates hollow blocks, solid blocks, pavers, and interlocking bricks. Cycle time varies by format — a 400 × 200 × 200 mm hollow block will have a different cycle than a smaller interlocking paver. Exact cycle times are confirmed during configuration based on your chosen mould and target block dimensions.

Q: How do I verify the 15–25 second molding cycle applies to my target block size?
A: The stated cycle range was measured under specific conditions. To verify it for your production, provide your target block dimensions and required compressive strength. A factory test using your raw material sample confirms whether the 6–8 MPa pressure and 4500 r/min vibration produce acceptable blocks within that cycle window.

Q: What mix design information should I supply for proper machine calibration?
A: Send a representative sample of your sand, crushed stone, or fly ash along with the cement type available locally. Aggregate gradation, moisture content, and clay percentage all influence how vibration force and hydraulic pressure interact. Configuration is then set against your actual material rather than generic defaults.

Q: How long does a mould change take on site with this machine?
A: Mould change time depends on operator familiarity and the specific mould set in use. The QMY4-30 uses a hydraulic demolding system, and the mould is bolted to the vibration table. First-time changes take longer, but trained crews can complete the swap and resume production within a single shift once the procedure is established.

Q: How does pallet-free operation affect my curing area layout?
A: Without pallets, blocks cure directly on the ground, so you need a flat, compacted surface within the 500 m² area. Blocks remain in place until cured, which means production space and curing space overlap. Planning the daily movement path for the QMY4-30 ensures freshly laid blocks are not disturbed during subsequent production passes.
