Professional High Efficiency Cement Block Making Machinery Fully Automatic Hollow Brick Production Line PLC Control Engine Pump
This product is currently out of stock and unavailable. SKU: Professional High Efficiency Cement Block -35644692 Category: Stationary block machine Description Additional information Description Products Description QT4-20 block machine introduction1. The machine adopts hydraulic system and the working procedure is very even and dependable. hydraulic press together with efficiently vibration make the shape. which has […]
Automation
Fully Automatic
Vibration
Air-bag System
Lead Time
15-25 Working Days
Warranty
12 Months
Product Details
Products Description

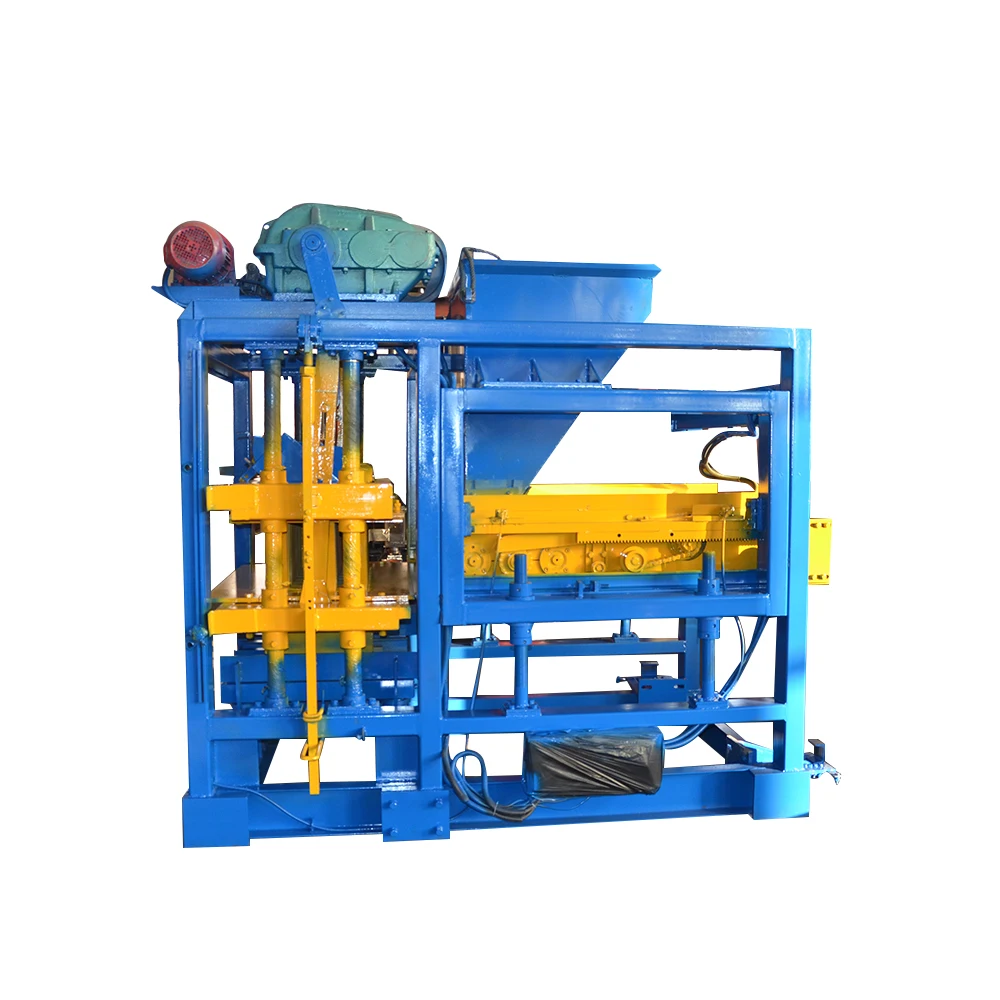

QT4-20 block machine introduction
1. The machine adopts hydraulic system and the working procedure is very even and dependable. hydraulic press together with efficiently vibration make the shape. which has high density and good quality.
2. It can produce various kinds of paving bricks. porous bricks. roads bricks etc.
3.The bricks with smooth appearance and high density. It can be piled up directly.
2. It can produce various kinds of paving bricks. porous bricks. roads bricks etc.
3.The bricks with smooth appearance and high density. It can be piled up directly.
Product Paramenters
Overall Dimension | 7100*1600*2610mm |
Rated Pressure | 16-21MPa |
Main Vibration Form | Platform Vibration |
Vibration Frequency | 4600 ( r/min) |
Pallet Size | 1020*570mm |
Molding cycle | 15-25 (s) |
Overall Power | 27.5KW |
Vibration Force | 40KN |
Total Mass | 5T |
Demolding method | Hydraulic |
Molding area consumption | 400*800mm |
Factory Area | 500m2 |
Applied Products | Concrete blocks. hollow/solid blocks. pavers |
Raw Material | Crushed stone. sand . cement. dust.fly ash. gravel. slag |
Theoretical producivity
Item | Specification Size(L*W*H) | Qty/mold (pcs) | Cycle Molding | Per day (Pcs) | ||||
Hollow brick | 400*200*200mm | 4 | 15-20s | 7200-9600 | ||||
Porous Brick | 240*115*90mm | 14 | 15-20s | 20200-26800 | ||||
Standard Brick | 240*115*53mm | 28 | 15-17s | 47400-53700 | ||||
Block samples
FAQ
1. Is this block machine suitable for us to use?
Could you please tell us the investment plan? the capacity you want? What kind of bricks do you want to make? Then the most suitable model can be recommended to you.
2. Which industry does this block machine usually be used in?
Hollow Block. Muticelullar bricks. Paving bricks. Standard bricks. etc.
3. How to use the block machine?
We will send the operating manual to you after you purchase the machine.
4. How about the after sale service of block machine?
one year guarantee for the whole machine. we keep the superior quality machine for you.
5. What's your payment terms?
Our common payment is 30% deposit by T/T before arrange the machine production. 70% balance before the delivery. if other payment term. we can negotiate.
Could you please tell us the investment plan? the capacity you want? What kind of bricks do you want to make? Then the most suitable model can be recommended to you.
2. Which industry does this block machine usually be used in?
Hollow Block. Muticelullar bricks. Paving bricks. Standard bricks. etc.
3. How to use the block machine?
We will send the operating manual to you after you purchase the machine.
4. How about the after sale service of block machine?
one year guarantee for the whole machine. we keep the superior quality machine for you.
5. What's your payment terms?
Our common payment is 30% deposit by T/T before arrange the machine production. 70% balance before the delivery. if other payment term. we can negotiate.
Product packaging
