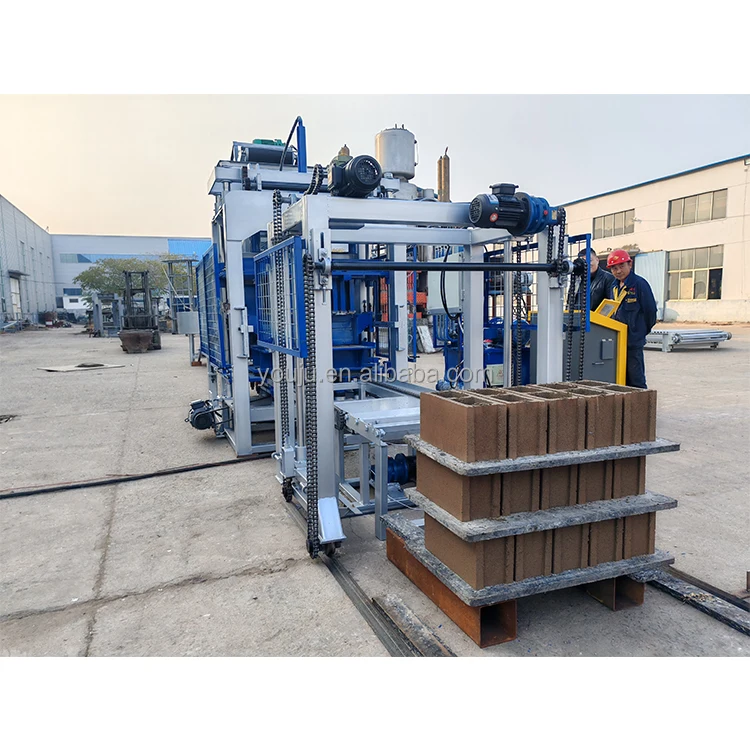

Hot Sale QT7-15 Automatic Hydraulic Pavement Brick Hollow Block Making Machine Interlock Cement Raw Material PLC Engine Easy
This product is currently out of stock and unavailable. SKU: Hot Sale QT7-15 Automatic Hydraulic Paveme-35644817 Category: Stationary block machine Description Additional information Description Product Description 1) The motor for the host machine is Germany SIEMENS brand or CE standard brand 2) Control PLC: we select the original Siemens PLC combine with an independently develop […]
Automation
Fully Automatic
Vibration
Air-bag System
Lead Time
15-25 Working Days
Warranty
12 Months
Product Details
Product Description
1) The motor for the host machine is Germany SIEMENS brand or CE standard brand 2) Control PLC: we select the original Siemens PLC combine with an independently develop machine control program. assure stable and high-efficiency working status 3) The Travel switch will use the France Schneider brand and Japan Omron 4) Mould: newest heat treatment device and carburizing treatment will assure a longer mold life span and ensure mold strength reaches 54-58 HRC so that the mold can be used more than 100 thousand times.5)Material and welding: all materials and spare parts are selected according to international CE standards. Carbon dioxide protection welding will assure the whole line stable running.
Specification and Production
QT7-15 Automatic Block Making Machine Technical Parameters | ||||
1 | Dimension of host machine | 3200x2300x2750MM | ||
2 | Weight of host machine | 6 Tons | ||
3 | Molding area | 1150*700mm | ||
4 | Workshop area | 200?O | ||
5 | Host machine power | 45KW | ||
6 | Vibration force | 100KN | ||
7 | Pallet size | 1150*700*25mm | ||
8 | Voltage | 220/380/415/440V(Customized) | ||
9 | Molding period | 15 Seconds | ||
10 | Vibration method | Hydraulic+Platform Vibration | ||
11 | Vibration frequency | 2800- 4500 Times/Minute | ||
common blocks capacity and samples
Grouped Equipments |
This line includes one QT7-15 BrickMachine with Pallet feeder and brick receiver. Hydraulic station.PLD1200 batching Machine .JS500 Mixer.Conveyor belt.hydraulic trolley If you produce color pavers. just add color feeding system.
PLD1200 Batching Machine
1.Weigh-batching hopper capacity:1200L2.Storage hopper capacity:4*2.5m33.Theoretical Productivity:56m3/h4.Ingredient precision:±2%5.Min Weight :3000KGS6.Batching species: 37.Height of Adding Material: 2.8mm8.Belt speed :1.25m/s9.Weight :4500kgs10.Dimensions:12000×2200×2500mm
1.Charging volume:800L2.Discharging volume:500L3.Production capacity:25m3/h4.Electric motor power for mixing:18.5kw5.Electric motor power for windlass:5.5kw6.Water pump power:0.75kw7.Maximum grain sizes of aggregate:60mm8.Weight of the whole machine:2800Kg9.Overall dimension(L*W*H):4490*3030*5280mm
(2)Power: 3KW
(3)Mobile pallet stack
(4)Suitable for hollow block and pavers (5)Weight: 600KGS
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine.
*Training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Packing & Delivery
customer working site
