Description

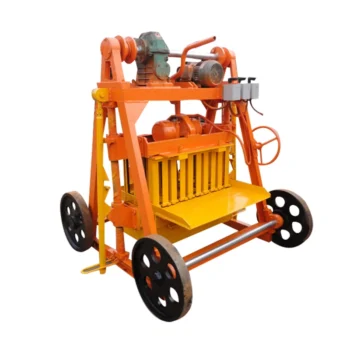

Vibration Force Verified Against Your Local Aggregate — the QMR4-45 mobile block machine specifications start with a 60KN vibration rating, but we test it against the actual mix design you send before confirming suitability for your site.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QMR4-45 |
| Product Type | Mobile Egg-laying Block Making Machine |
| Molding Cycle | 45s (basis not stated in source — confirm block format / material / thickness) |
| Power Source | Diesel Engine (Electric option available) |
| Engine Power | 8hp |
| Molding Form | Vibration and Pressure |
| Vibration Force | 60KN |
| Total Weight | 800kg |
| Overall Dimensions (L×W×H) | 2420×1320×1650mm |
| Pallet Requirement | No pallet required (egg-laying type) |
| Mobility | Mobile / movable on-site |
| Compatible Block Formats | Paver brick, hollow block, concrete block, solid brick, fly ash brick |
| Basic Equipment Included | JZC350 Diesel Concrete Mixer or JQ350 Diesel Concrete Mixer (Electric Generating Unit); Trolley |
| Automation Level | Manual / semi-automatic |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site hollow block production | Crushed stone, sand, and cement at building sites |
| Solid brick runs for housing projects | Fly ash blends and local aggregate with cement binder |
| Paver brick for walkways and yards | Fine aggregate with cement for surface-grade pavers |
| Remote or off-grid production | Diesel-powered operation where grid electricity is unavailable |
| First-line production for small contractors | Low-investment setup producing directly on leveled ground |
What "45-Second Cycle" Actually Means for Your Daily Output
A cycle time only becomes useful when tied to the specific block format and operator pace you will run.
Many mobile block machine specifications list a single cycle number that sounds productive until you realize it was measured on a small solid brick with ideal conditions. When the same machine runs a larger hollow block, the cycle extends, the operator’s walking pace between drops changes, and curing space becomes the real constraint on how many pieces land on the ground per shift. [NEED_CITE: mobile block machine capacity calculation methods] The QMR4-45 is no exception — its 45-second figure needs to be verified against the exact format your market demands before you can plan labor and curing area. I have watched buyers order a machine based on one number and then discover on arrival that their hollow block cycle is noticeably longer, cutting daily volume well below expectation.
Diesel Versus Electric: Matching Power to Your Site Reality
Choosing between the 8hp diesel engine and the electric variant for this mobile block machine depends entirely on what your site can supply reliably. Diesel removes the dependency on grid stability and lets the machine operate in remote locations, but it adds fuel logistics and engine maintenance to your daily routine. The electric option simplifies operation and reduces running cost where three-phase power is already available and stable. Confirming voltage, frequency, and control language before production avoids a situation where the machine arrives and sits idle waiting for an electrician or a translated panel.
No-Pallet Egg-Laying Design and What It Demands From Your Ground

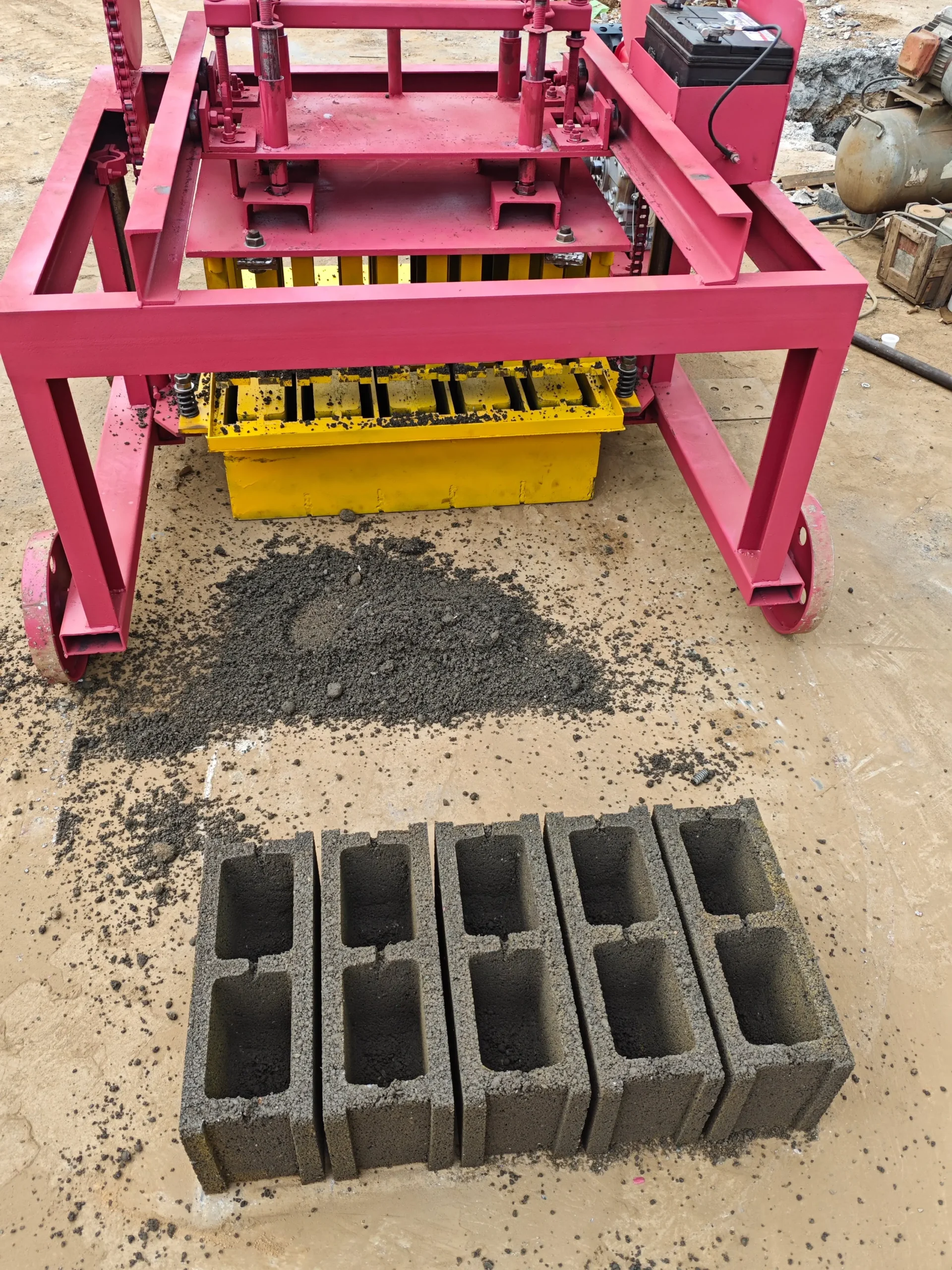

The egg-laying format means the QMR4-45 deposits each block directly onto a prepared surface and moves forward, eliminating pallet purchase, pallet handling labor, and curing-rack infrastructure. This is how to choose a mobile block machine when your budget cannot stretch to pallet stock and handling equipment. The trade-off is ground preparation: the surface must be level, firm, and large enough to hold an entire shift’s output until the blocks cure sufficiently to move. If your curing area is uneven or soft, block geometry will vary and bottom-course breakage becomes a recurring problem. [NEED_CITE: egg-laying block machine ground preparation standards]
Reading the Numbers That Matter on This Machine
The 60KN vibration force works together with the pressure molding system to compact the mix into the mould cavity, and the resulting block density depends on how well that force matches your local aggregate’s particle shape and your cement content. A high-clay material absorbs vibration differently from clean crushed stone, so the same machine produces different strength outcomes with different feeds. The 800kg total weight gives the machine enough mass to stay stable during vibration without anchoring, but it also means moving the unit around a large site requires planning for pathway width and ground bearing. The included JZC350 or JQ350 diesel mixer ensures the concrete arrives at the hopper at a consistent rate so the press is not left waiting between batches.
When a Low-Cost Specification Turns Expensive
Ordering a mobile block machine without confirming the mould format against your local market leads to a machine that runs, but produces a block nobody nearby wants to buy. Skipping the sample material test means discovering on commissioning day that the vibration force does not compact your red clay or laterite to the strength your building code requires. Leaving the electrical specifications unresolved on an electric variant results in the control panel displaying the wrong language and the wrong voltage tapping, delaying your first production run by weeks while components are shipped. [NEED_CITE: common mobile block machine commissioning delays] These are not rare failures — they show up repeatedly when the inquiry stage skips questions that feel slow but actually prevent costly rework.
Why Sourcing This Machine Here Makes the Difference
Block machinery is our single focus, so the QMR4-45 is specified as a matched system — machine, mould, mixer, and trolley — rather than assembled from separate suppliers who do not coordinate. We set the configuration against the mix design and local aggregate you send us, not against a catalogue default that assumes river sand. Mould design covers the formats your market actually sells, and custom mould drawings are available when your block dimensions differ from standard sizes. You can start with the manual configuration and add automation later as your production volume grows, keeping initial investment proportionate to your actual demand. Installation support includes operator training so your crew understands mould change, vibration adjustment, and daily maintenance from the first shift.
Documentation & Verification
- Line layout showing curing area required for your chosen block format and shift length
- Machine specification sheet with vibration force and engine power confirmed per your site conditions
- Mould drawing and format list matching the block types your local market sells
- Factory test record run on your material sample before the machine leaves the workshop
- Operation and maintenance manual in your preferred language covering daily checks and mould change
- Wear parts and mould list with part numbers for your first year of replacements
Installation, Commissioning & Support
- Level, compacted ground surface prepared to accommodate the 2420×1320mm machine footprint plus curing area
- Diesel fuel supply and storage arranged for the 8hp engine, or dedicated electrical circuit confirmed for the electric variant
- Machine delivered assembled with mixer and trolley; no major on-site reassembly required for the QMR4-45
- First-run vibration and pressure settings adjusted to match your local aggregate sample during commissioning
- Operator training covering mould change procedure, hopper loading pace, and daily lubrication points
- Wear parts kit identified before shipment so replacement vibration springs and mould liners are on hand
What to Share When You Are Ready to Specify
Tell us which block format your market buys most — hollow, solid, or paver — along with the dimensions and the strength grade your building code requires. Send a sample of your local aggregate and cement so we can run a material test against the 60KN vibration rating and confirm realistic output per shift. Let us know whether your site has reliable three-phase power or whether the diesel configuration is the practical choice, and share any ground conditions or curing-space constraints we should factor into the layout.
Frequently Asked Questions
Q: What is the realistic daily output of the QMR4-45 for each block format?
A: The 45-second cycle figure must be verified against the specific block size, mix material, and operator pace you will run. We provide a format-specific capacity calculation during the inquiry stage so the daily output number you plan against reflects your hollow block, solid brick, or paver dimensions rather than a generic assumption.
Q: How does the 60KN vibration force interact with my local aggregate?
A: Vibration compacts the mix inside the mould, but particle shape, clay content, and moisture level all change how that force translates into block density. We test your actual material sample before confirming the machine is suitable, so you know in advance whether the vibration force produces the strength your market requires.
Q: What mould formats are available and how long does a mould change take?
A: Moulds cover hollow block, solid brick, paver brick, and fly ash brick formats, with custom design available to your drawings. Mould change time on the QMR4-45 depends on the operator’s familiarity and the bolt configuration; we train your crew during commissioning so the swap does not consume a significant portion of your shift.
Q: Diesel or electric — how do I choose for my site?
A: Diesel suits off-grid locations and sites with unreliable electricity, at the cost of fuel logistics and engine maintenance. The electric variant reduces running cost where stable three-phase power is available. We confirm voltage, frequency, and control panel language before production so commissioning is not delayed by electrical mismatches.
Q: What spare parts should I stock for the first year?
A: Vibration springs, mould liners, mixer blades, and drive belt components are the typical wear items. We provide a detailed wear parts list with part numbers before shipment so you can order a first-year kit that arrives with the machine and avoids production stops while waiting for replacements.
