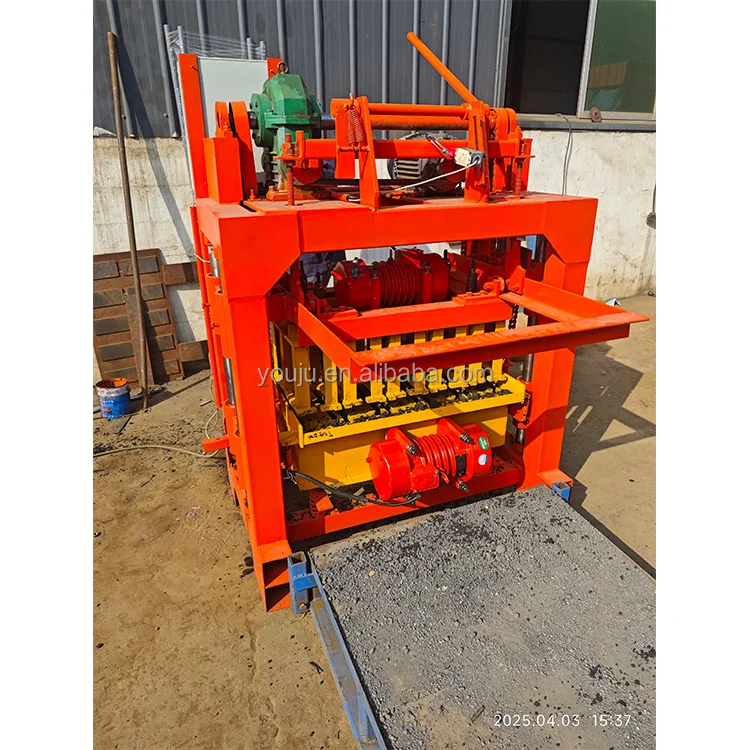

Efficient Manual Engine & Motor Cement Block Brick Making Machine with Hydraulic Pressure for Concrete Hollow Bricks
This product is currently out of stock and unavailable. SKU: Efficient Manual Engine Motor Cement Blo-35644737 Category: Stationary block machine Description Additional information Description Products Description QTJ4-40 block machine introduction1.Based on the former block machine. this type block machine is the reformed machine with reasonable design. favorable property. and super strong vibration motor. And it […]
Automation
Fully Automatic
Vibration
Air-bag System
Lead Time
15-25 Working Days
Warranty
12 Months
Product Details
Products Description
QTJ4-40 block machine introduction
1.Based on the former block machine. this type block machine is the reformed machine with reasonable design. favorable property. and super strong vibration motor. And it manufactures bricks with good quality. large density. and high strength.
2.This machine adopts top die push and pull and automatic scraper. which is simple to operate as well as the large-scale equipment.
2.This machine adopts top die push and pull and automatic scraper. which is simple to operate as well as the large-scale equipment.
Product Paramenters
QTJ4-40 block machine parameters | ||
Capacity | 2800pcs/8hours | |
Raw material | Concrete. cement. fly ash. crushed stone. sand . dust. gravel. slag.etc. | |
Applied Products | Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc. | |
Main Vibration Form | Platform Vibration | |
Vibration Frequency | 2800(r/min) | |
Pallet Size | 850*450mm | |
Ratio of raw material | cement 8%-10%.sand 30%-40% .stone:50%-60%about cement :sand : stone is1:4:5. | |
Machine weight | 1T | |
Factory Area | 200m2 | |
Overall size | 1350*1460*1800mm | |
Worker | 1-3 people | |
QTJ4-40 Production Capacity | ||||||||
Item | Size (mm) | Mould (pcs) | Per hour (pcs) | Per day (pcs) | ||||
1 | 400*200*200 | 4 | 360 | 2880 | ||||
2 | 400*150*200 | 5 | 500 | 4000 | ||||
3 | 225*112.5*60 | 9 | 900 | 7200 | ||||
Block samples
Product packaging
