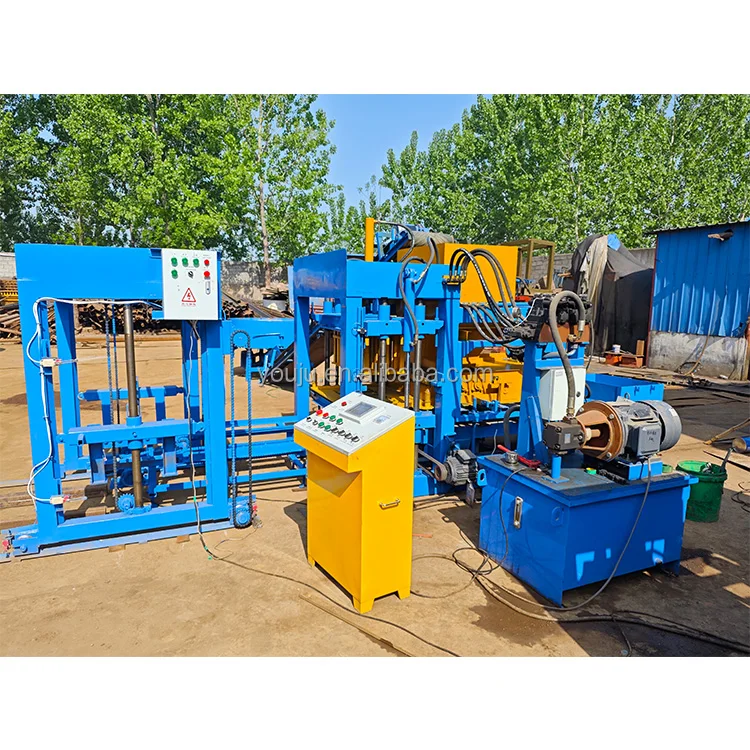

Block Manufacturing Machine QTJ4-40 Block Manufacturing Machine for Eco-Friendly Hollow Bricks
This product is currently out of stock and unavailable. SKU: Block Manufacturing Machine QTJ4-40 Block -35644800 Category: Stationary block machine Description Additional information Description Products Description Technique ParametersDimension1350x1460x1800mmMachine power10.4kw Molding cycle 40s Capacity 2000-2500pcs/8hours Raw material concrete. sand.cement. fly ash. lime. gypsum.etc. Machine weigh 1.2T Pallet size 850*450*20mm Voltage According to your local voltage For […]
Automation
Fully Automatic
Vibration
Air-bag System
Lead Time
15-25 Working Days
Warranty
12 Months
Product Details
Products Description
Technique Parameters | ||
Dimension | 1350x1460x1800mm | |
Machine power | 10.4kw | |
Molding cycle | 40s | |
Capacity | 2000-2500pcs/8hours | |
Raw material | concrete. sand.cement. fly ash. lime. gypsum.etc. | |
Machine weigh | 1.2T | |
Pallet size | 850*450*20mm | |
Voltage | According to your local voltage | |
For QTJ4-40 machine maybe you have following question?
Q1: What machines do I need for this production?
A1: A mixer.a host machine. the block mould and pallets.
Q2: What bricks can be produced?
A2: Hollow.solid.paver in all size.Normally 8 inch.6 inch.5 inch.4 inch.If you need other size please contact me.
Q3: What is a pallet? What is its use in the production process?
A3: The pallet is actually used to place the newly made bricks during the brick production process. It is convenient for us to move the bricks to a dry and ventilated place before the bricks are completely fixed and wait for the bricks to dry and form.I will show you the picture and the video.
Q4:What is the machine output?
A4: Hollow 400x200x200 mm.4 pcs/mould .360pcs/hour.2880pcs/day.If you want to know other size.please send message to me.
A4: Hollow 400x200x200 mm.4 pcs/mould .360pcs/hour.2880pcs/day.If you want to know other size.please send message to me.
Q5:Is there anything I can do without buying?
A5:1)Mixer if you have.you can not buy.2) pallet is an optional part.which material is fiber glass.If you have in your local market.some may do the wooden pallet is also can be used.It up to you.
2.It also makes the mould and the squeeze head works more precise.
3.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
4.It manufactures blocks with more average density and higher strength because of the above four reason.
Common blocks theoretical Capacity and common blocks samples
Theoretical productivity | ||||||||
No. | Block size | Pcs/mould | Pcs/hour | Pcs/day | ||||
1 | 400*200*200mm | 4 | 360 | 2800 | ||||
2 | 400*150*200mm | 5 | 450 | 3600 | ||||
3 | 225*112.5*60mm | 9 | 800 | 6400 | ||||
